Industrial Pumps

End suction pump for paper and pulp applications with a dry solids content of up to 8 %. APP are horizontal, single-stage, single-entry process pumps, usually with open impeller, with radially split volute casing, in back pull-out design.

CPK pumps are horizontal, radially split, single-stage, single-entry volute casing process pumps in back pull-out design, with radial impeller, to EN 22858 / ISO 2858 / ISO 5199. Complemented by pumps of DN 250.

Main Applications

• Chemical industry
• Food industry / beverage industry
• General industry
• Refinery
• Paper industry / pulp industry
• Sugar industry

Benefits

• Easy maintenance due to back pull-out design
• Design with dry shaft, i.e. no contact between fluid handled and shaft
• Standardised pump with modular design system

Applications: Pump for handling a wide range of fluids. These pumps can be used for organic and inorganic fluids without or with moderate solids content. Automotive industry Iron and steel industry Marine applications Food industry Paper industry Chemical and petrochemical industries Water treatment systems Surface treatment systems Paint booths Air-conditioning systems Washing plants Energy generating plants Mining

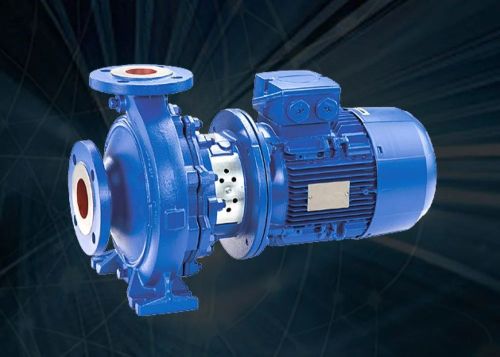

Single-stage close-coupled volute casing pump, with ratings to EN 733, with replaceable shaft sleeve and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Etabloc comes into its own in situations where every centimetre counts: with pump and motor connected in one compact unit the close-coupled pump features an extremely space-saving design that is perfect when things get tight. And all this without sacrificing excellent efficiency!

Application

• Hotels & High Rise Buildings
• Defence Establishments
• Hospitals
• Theaters
• Ports & Dry Docks
• Production Plants
• Airports
• Mines
• Steel Plants
• Drilling Ships & Off Shore Rigs
• Seb's & Utilites
• Metro & Conventional Railways
• Nuclear Power Stations & Research Centres

Main Applications

• Handling clean or aggressive fluids not chemically and mechanically aggressive to the pump materials.
• Water supply systems
• Cooling circuits
• Swimming pools
• Fire-fighting systems
• General irrigation systems
• Drainage systems
• Heating systems
• Air-conditioning systems
• Spray irrigation systems

Benefits

• Improved efficiency and NPSHreq by experimentally verified hydraulic design of impellers (vanes)
• Operating costs reduced by trimming the nominal impeller diameter to match the specified duty point
• Little wear, low vibration levels and excellent smooth running characteristics thanks to good suction performance and virtually cavitation-free operation across a wide operating range
• Casing sealed reliably – even in varying operating conditions – by confined casing gasket
• Large variety of materials as standard for perfectly matching the pump to the fluid handled
• Extended selection chart with additional pump sizes for small flow rates
• Easy to dismantle using forcing screws at the interface of casing cover and drive lantern

The KSB ETANORM C Single Stage Centrifugal Pumps are part of KSB's well-known series of pumps designed for high-performance applications. These pumps are versatile, energy-efficient, and reliable, widely used in various industrial sectors. Below is a general description of these pumps:

Key Features:

1. Single-Stage Design:

   • The ETANORM C pumps have a single impeller and are engineered to provide moderate pressure and flow. Their single-stage design makes them simple, efficient, and cost-effective for many applications.

2. High Efficiency:

   • KSB's ETANORM C pumps are known for their high efficiency, which leads to significant energy savings during operation. They are designed to meet high energy standards, helping reduce operational costs.

3. Wide Range of Applications:

   • These pumps are used in a broad spectrum of industrial sectors, such as water supply, heating, air-conditioning, and chemical industries. They are ideal for applications requiring the pumping of clear or slightly contaminated liquids.

4. Durable and Robust:

   • Built for durability, the ETANORM C pumps are made of high-quality materials, ensuring long service life. They are designed to withstand harsh operating conditions and are available in various materials to handle a wide range of liquids.

5. Versatility:

   • The ETANORM C is highly versatile and can be applied to a range of tasks, including pumping water, chemicals, and oils, depending on the configuration.

6. Simple Maintenance:

   • These pumps are designed for easy maintenance. Their construction and modular components allow for quick access and straightforward servicing. The pump can be disassembled and reassembled easily, reducing downtime and maintenance costs

Horizontal volute casing pump, single-stage, with ratings and main dimensions to EN 733, long-coupled, back pull-out design, with replaceable shaft sleeves / shaft protecting sleeves and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.Select  standards the cast resin transformer are manufactured to comply with national international standards bisi is 11171, iec 60726.

Main Applications

• Handling clean or aggressive fluids not chemically and mechanically aggressive to the pump materials.
• Water supply systems
• Cooling circuits
• Swimming pools
• Fire-fighting systems
• General irrigation systems
• Drainage systems
• Heating systems
• Air-conditioning systems
• Spray irrigation systems

Benefits

• Improved efficiency and NPSHreq by experimentally verified hydraulic design of impellers (vanes)
• Operating costs reduced by trimming the nominal impeller diameter to match the specified duty point
• Little wear, low vibration levels and excellent smooth running characteristics thanks to good suction performance and virtually cavitation-free operation across a wide operating range
• Large variety of materials as standard for perfectly matching the pump to the fluid handled
• PumpDrive perfectly matched to pump and motor by default factory parameter settings
• Motor-mounted variable speed system up to 45 kW saves space
• Pump operation made fully transparent with PumpMeter
• The efficiency of the motor also exceeds 95 % of the nominal efficiency when the motor runs at 25 % of its nominal power on a quadratic torque-speed curve.
• Sustainable and environmentally friendly because no magnets based on "rare earth elements" such as NdFeB are used

Horizontal volute casing pump in back pull-out design, single-stage, with ratings and dimensions to EN 733, radially split volute casing with integrally cast pump feet, replaceable casing wear rings, closed radial impeller with multiply curved vanes, single mechanical seal to EN 12756, double mechanical seal to EN 12756, drive-end bearings: rolling element bearings, pump-end bearings: plain bearings, with magnetless KSB SuPremE motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 and PumpDrive variable speed system; ATEX-compliant version available.

Main Applications

• Heat transfer systems
• Hot water circulation

Benefits

• Designed to deliver reliable operation with mineral and synthetic thermal oils up to 350 °C
• Maximum operating reliability ensured by KSB single mechanical seal and KSB double multi-spring mechanical seals in tandem arrangement as well as quench systems tailored to any application
• Safety barriers: Optimised contour ensures reliable removal of leakage at the mechanical seal; additional shaft seal ring, durable grease-packed bearings, confined sealing elements and effective heat barrier
• Reliable venting during pump operation by patented KSB VenJet® technology
• Individual requirements are met with maximum efficiency, and operating costs are reduced: impeller trimming, variable speed operation / intelligent control by KSB frequency inverters and KSB motors up to IE5, maximum hydraulic pump efficiency and low NSPHreq
• Wide range of applications through compliance with EN PN16 and ASME, ATEX-compliant version, carbon and SiC/SiC plain bearings, marine version to DNV GL and version with fan impeller for efficient cooling
• The "cracked-joint" design of the coupling hubs enables straightforward assembly and dismantling of the coupling. The double Cardan coupling compensates shaft offset.
• Continuous leakage monitoring by innovative KSB Leakage Sensor. Predictive maintenance avoids unscheduled downtimes.
• Vibration, pressure and temperature measurement connections provided as standard. Sensor kit can be ordered together with the pump.

Horizontal, radially split, multistage ring-section pump with single-entry radial impellers.

Main Applications

• Generation of pressurised water for descaling units

Benefits

• Radial thrust minimised by secured hydraulic impeller/diffuser design
• Higher efficiency
• Axial thrust balanced by balance disc – no residual thrust
• Casing sealed perfectly and reliably by metal-to-metal contact and O-rings
• Flanges to ASME / DIN for higher permissible forces and moments
• Durable materials
• Easy replacement of impeller wear rings and stage sleeves

Horizontal radially split volute casing pump in back pull-out design to ISO 2858 / ISO 5199, single-stage, single-entry, with radial impeller. Equipped with heat barrier, seal chamber air-cooled by integrated fan impeller, no external cooling. ATEX-compliant version available.

Main Applications

• Pump for handling hot water and organic or synthetic heat transfer fluids in piping or tank systems.
• Heating systems
• Forced circulation boilers
• District heating
• Heat transfer systems

Benefits

• Low temperature in the mechanical seal chamber; no cooling water required thanks to air-cooled bearing bracket with heat barrier.
• Increased operating reliability of versions for heat transfer applications by an optional two mechanical seals preventing leakage.
• Higher efficiencies than the previous HPK-L model by continued development of the flow passage within the hydraulic system.
• Optimised venting of mechanical seal chamber by patented VenJet profile.

• Designed for transferring viscous liquid in food and sanitary applications.
• Compact design with smooth discharge of liquid ensuring gentle handling.
• Designed with bi-lobe and tri-lobe rotors with single or double Mechanical Seal.
• Available in stainless steel material as per sanitary design.
• Horizontal and vertical orientation possible as per usage.
• Suitable for CIP/SIP process operation carried during the production Normally installed with pump, coupling, steel coupling guard, stainless steel baseframe and gear motor of standard make

Applications: Food Processing (Chocolate, Jam, Jelly, Syrup, Tomato Puree etc.) Dairy (Ice-Cream Mix, Yogurt, Milk chocolate etc.) Pharma (Body Lotion, Ointment, Gel etc.)

Horizontal radially split volute casing pump in back pull-out design, single-stage, single-entry, available with various impeller types: closed multi-channel impeller, open multi-vane impeller and vortex impeller. ATEX-compliant version available.

Main Applications

• Paper industry / pulp industry
• Sugar industry
• Food industry / beverage industry
• Fossil-fuelled power stations
• Chemical industry
• Petrochemical industry
• Flue gas desulphurisation
• Coal upgrading plants
• Industrial waste water treatment systems
• Seawater desalination/reverse osmosis

Benefits

• Easy to service thanks to back pull-out design
• Safe design: all pressure-retaining components cast with extra corrosion/wear allowance.
• Standard pump with suction-side wear plate in wear-resistant diagonal gap design
• High levels of efficiency with channel-type impeller; impeller with front vanes and diagonal gap; back vanes reduce axial thrust
• Dry shaft: no special materials required
• Bearing assembly in reinforced, adjustable design
• Mechanical seal fitted in conical shaft seal chamber for optimum circulation around the mechanical seal, venting and drainage of the shaft seal chamber

KSB MEGACHEM Single Stage Centrifugal Pumps are high-quality industrial pumps designed for handling aggressive or corrosive liquids in various chemical and process engineering applications. These pumps are part of KSB's MEGACHEM series, known for their robustness and reliability in challenging environments.

Key Features and Description:

1. Design: The pumps feature a single-stage design, meaning they have a single impeller. This simple and efficient design makes them ideal for tasks requiring moderate flow and pressure. They are designed for horizontal installation.

2. Material Construction: These pumps are constructed using materials that resist corrosion and abrasion, such as stainless steel, cast iron, or special alloys. This makes them particularly suitable for handling chemicals, acids, and other corrosive or aggressive liquids.

3. Performance: They are designed to offer excellent efficiency in transferring liquids with low to medium viscosity. Their hydraulic performance is optimized for a wide range of applications, ensuring high reliability and energy efficiency.

Horizontal radially split volute casing pump in back pull-out design, with radial impeller, single-entry, single-stage, to , dimensions to , complemented by nominal diameters DN25 and ≥DN200, in large range of material and seal variants; also available as a variant with "wet" shaft and conical seal chamber. ATEX-compliant version available.

Main Applications

• Chemical industry (aggressive / other liquids)
• Petrochemical industry (aggressive / other liquids)
• Process engineering
• Refinery
• Biodiesel, bioethanol applications
• Renewable energy
• Fossil-fuelled power stations
• Seawater desalination/reverse osmosis
• Paper industry / pulp industry
• General industry
• Steel industry
• Alcohol industry
• Food industry / beverage industry
• Sugar industry

Benefits

• Hydraulic characteristics optimised for excellent efficiency and NPSH, ensuring energy-efficient and environmentally friendly use of resources
• Lower investment costs as duty points required can be achieved with smaller pump sizes
• Lower operating costs due to reduced energy consumption, optimised spare parts concept and hard-wearing, service-friendly design
• Flexible use due to modular design regarding hydraulic system materials, sealing elements, bearing brackets, coupling, baseplate and drive

Horizontal, multistage high-pressure centrifugal pump in ring-section design, with pump feet integrally cast with the bearing housing.

Main Applications

• Waterworks
• Pressure boosting
• General irrigation systems
• Boiler feed applications

Benefits

• Total head of up to 364 metres
• Suitable for high temperatures of up to 140 °C
• Robust design

Multistage vertical high-pressure immersion pump for installation on tanks or platforms.

Main Applications

• Machine tools
• Industrial washing machines
• Condensate transport

Benefits

• Top quality pump thanks to advanced high-precision production technology and durable high-grade materials
• Excellent reliability, enabled by compact, easy-to-replace cartridge seal and automatic return of small amounts of leakage into the tank
• An energy-saving, state-of-the-art pump solution characterised by high efficiency levels, optimum flow passage, the use of high-efficiency motors, and precision engineering of all hydraulic components
• Flexible use due to modular design, optional blind stages and versatile seal materials for a wide variety of applications, as well as numerous motor options
• Easy replacement of competitor products due to comparable dimensions
• High energy efficiency as well as low investment and maintenance costs make for low life cycle costs.

Multistage vertical high-pressure centrifugal pump in ring-section design with suction and discharge nozzles of identical nominal diameters arranged opposite to each other (in-line design), close-coupled. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.

Main Applications

• Spray irrigation systems
• General irrigation systems
• Washing plants
• Fire-fighting systems
• Pressure boosting
• Industrial plants
• Water supply systems
• Heating, ventilation and air-conditioning systems
• Marine applications

Benefits

• Reliable: product-lubricated plain bearings made of tungsten carbide, cast pump foot, torsion-resistant pump shroud and confined O-rings
• Long service life: corrosion-resistant hydraulic components made of stainless steel
• Easy to service: can be fitted with any standardised mechanical seal (to EN 12756)
• Flexible: various materials and connection options, extended temperature range and pressure range

Multistage horizontal or vertical centrifugal pump in ring-section design, long-coupled or close-coupled, with axial or radial suction nozzle, cast radial impellers and motor-mounted variable speed system. ATEX-compliant version available.

Main Applications

• Water supply systems
• Drinking water supply
• Pressure boosting
• General irrigation systems
• Fossil-fuelled power stations
• Hot-water supply
• Condensate transport
• Boiler feed applications
• Heating systems
• Filtering systems
• Fire-fighting systems
• Snow-making systems
• Washing plants
• Industrial plants
• Desalination plants
• Geothermal plants
• Heat recovery systems

Benefits

• Flexible, best matching adaptation to system condition by variety of installation types and variable nozzle position
• Low NPSH value, improved suction behaviour and operating reliability for suction lift operation by special suction stage impeller
• Optimised efficiencies and reduced operating costs by newly developed hydraulic system
• Versatile use by broad range of installation types, materials and shaft seals

Single-stage axially split volute casing pump for horizontal or vertical installation, with double-entry radial impeller, mating flanges to DIN, EN or ASME.

Main Applications

• Waterworks
• Desalination plants
• Pressure boosting
• Water transport
• Service water and cooling water for power stations and industry
• Irrigation pumping stations
• Drainage pumping stations
• Fire-fighting systems
• Shipbuilding
• District heating systems and district cooling systems

Benefits

• Low maintenance costs:
  • Fast and easy to install thanks to self-centring components (upper casing part, rotor, casing cover)
  • Materials resistant to corrosion and abrasion
  • Smooth operation with low vibration levels
  • Replacement and spare parts fit several pump sizes
• Long service life:
  • Sealed and dry shaft
  • Short bearing distances and a short shaft
  • Optional impeller wear rings
  • Replaceable shaft protecting sleeve
• High operating reliability:
  • Rigid shaft without threads between the bearings
  • Generously sized bearings (Lh10 = 100,000 hours)
  • Reliable sealing thanks to solid casing split flange
  • Double-entry impeller for axial thrust balancing
  • Double volute design
• High flexibility:
  • Drive can be positioned to the left or right of the pump
  • Shaft sealed by gland packing or mechanical seals
  • Various horizontal and vertical installation options
  • Flanges to DIN or ASME
• Excellent efficiencies and NPSH values:
  • Computer-optimised impellers
  • Large impeller inlet diameters for optimum suction behaviour
  • Cost-effective replacing of casing and impeller wear rings
  • Vortex-free intake elbow with low energy losses
  • Impeller trimmed to match the specified duty point
  • Several hydraulic systems per pump size
