| Business Type | Exporter, Supplier, Trader |
| Brand Name | KSB |
| Material | Mild Steel |
| Driven Type | Electric |
| Click to view more | |
Product Details
Color
Grey
Operating Type
Automatic
Specialities
Durable
Max Flow Rate
1400 M3/h
Motor Phase
Three Phase
Motor Horsepower
3 HP
Stages
Single Stage
Max Head
233 M
Connection Type
Flange
Product Code
HPK-L

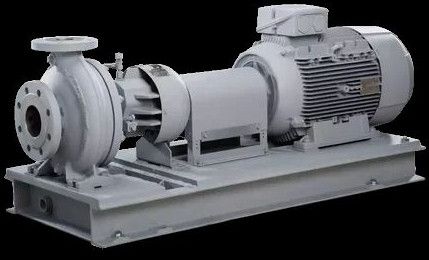

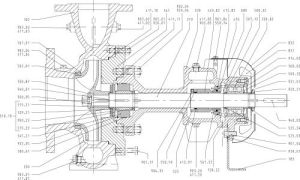

Horizontal radially split volute casing pump in back pull-out design to ISO 2858 / ISO 5199, single-stage, single-entry, with radial impeller. Equipped with heat barrier, seal chamber air-cooled by integrated fan impeller, no external cooling. ATEX-compliant version available.
Main Applications
- Pump for handling hot water and organic or synthetic heat transfer fluids in piping or tank systems.
- Heating systems
- Forced circulation boilers
- District heating
- Heat transfer systems
Benefits
- Low temperature in the mechanical seal chamber; no cooling water required thanks to air-cooled bearing bracket with heat barrier.
- Increased operating reliability of versions for heat transfer applications by an optional two mechanical seals preventing leakage.
- Higher efficiencies than the previous HPK-L model by continued development of the flow passage within the hydraulic system.
- Optimised venting of mechanical seal chamber by patented VenJet profile.
Looking for "KSB HPK-L Single Stage Centrifugal Pump" ?
