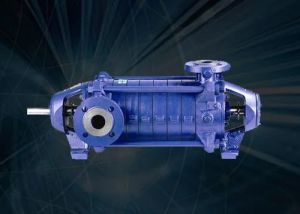

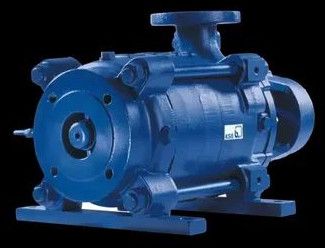

KSB Multitec Horizontal Multistage Pump

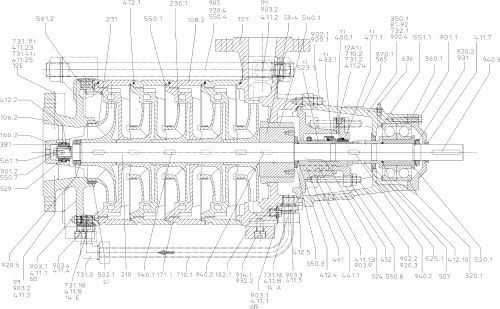

Multistage horizontal or vertical centrifugal pump in ring-section design, long-coupled or close-coupled, with axial or radial suction nozzle, cast radial impellers and motor-mounted variable speed system. ATEX-compliant version available.

Main Applications

• Water supply systems
• Drinking water supply
• Pressure boosting
• General irrigation systems
• Fossil-fuelled power stations
• Hot-water supply
• Condensate transport
• Boiler feed applications
• Heating systems
• Filtering systems
• Fire-fighting systems
• Snow-making systems
• Washing plants
• Industrial plants
• Desalination plants
• Geothermal plants
• Heat recovery systems

Benefits

• Flexible, best matching adaptation to system condition by variety of installation types and variable nozzle position
• Low NPSH value, improved suction behaviour and operating reliability for suction lift operation by special suction stage impeller
• Optimised efficiencies and reduced operating costs by newly developed hydraulic system
• Versatile use by broad range of installation types, materials and shaft seals
