| Business Type | Exporter, Supplier, Trader |
| Usage | Industrial |
| Material | Metal |
| Max Flow Rate | 755 M3/h |
| Click to view more | |
Product Details

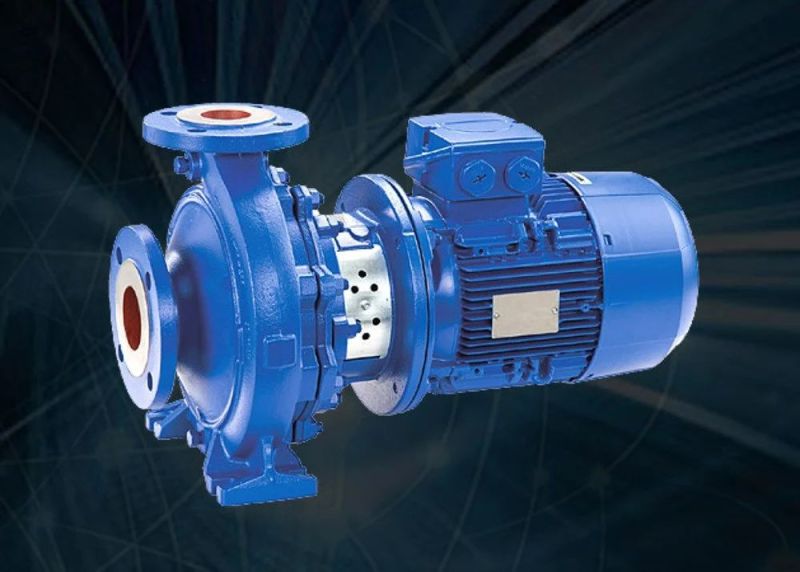

Single-stage close-coupled volute casing pump, with ratings to EN 733, with replaceable shaft sleeve and casing wear rings, with motor-mounted variable speed system. With KSB SuPremE, a magnetless synchronous reluctance motor (exception: motor sizes 0.55 kW / 0.75 kW with 1500 rpm are designed with permanent magnets) of efficiency class IE4/IE5 to IEC TS 60034-30-2:2016, for operation on a KSB PumpDrive 2 or KSB PumpDrive 2 Eco variable speed system without rotor position sensors. Motor mounting points in accordance with EN 50347, envelope dimensions in accordance with DIN V 42673 (07-2011). ATEX-compliant version available.
Etabloc comes into its own in situations where every centimetre counts: with pump and motor connected in one compact unit the close-coupled pump features an extremely space-saving design that is perfect when things get tight. And all this without sacrificing excellent efficiency!
Application
• Hotels & High Rise Buildings
• Defence Establishments
• Hospitals
• Theaters
• Ports & Dry Docks
• Production Plants
• Airports
• Mines
• Steel Plants
• Drilling Ships & Off Shore Rigs
• Seb's & Utilites
• Metro & Conventional Railways
• Nuclear Power Stations & Research Centres
Main Applications
- Handling clean or aggressive fluids not chemically and mechanically aggressive to the pump materials.
- Water supply systems
- Cooling circuits
- Swimming pools
- Fire-fighting systems
- General irrigation systems
- Drainage systems
- Heating systems
- Air-conditioning systems
- Spray irrigation systems
Benefits
- Improved efficiency and NPSHreq by experimentally verified hydraulic design of impellers (vanes)
- Operating costs reduced by trimming the nominal impeller diameter to match the specified duty point
- Little wear, low vibration levels and excellent smooth running characteristics thanks to good suction performance and virtually cavitation-free operation across a wide operating range
- Casing sealed reliably – even in varying operating conditions – by confined casing gasket
- Large variety of materials as standard for perfectly matching the pump to the fluid handled
- Extended selection chart with additional pump sizes for small flow rates
- Easy to dismantle using forcing screws at the interface of casing cover and drive lantern
