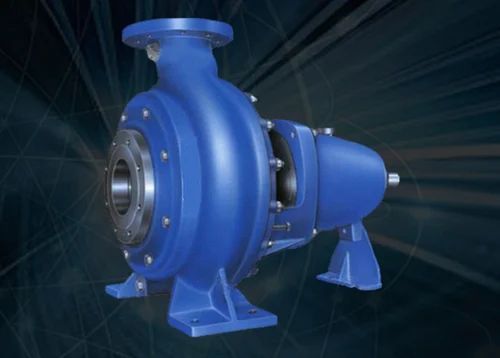

KSB KWP Non Clog Type Pump

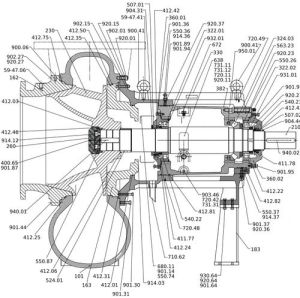

Horizontal radially split volute casing pump in back pull-out design, single-stage, single-entry, available with various impeller types: closed multi-channel impeller, open multi-vane impeller and vortex impeller. ATEX-compliant version available.

Main Applications

• Paper industry / pulp industry
• Sugar industry
• Food industry / beverage industry
• Fossil-fuelled power stations
• Chemical industry
• Petrochemical industry
• Flue gas desulphurisation
• Coal upgrading plants
• Industrial waste water treatment systems
• Seawater desalination/reverse osmosis

Benefits

• Easy to service thanks to back pull-out design
• Safe design: all pressure-retaining components cast with extra corrosion/wear allowance.
• Standard pump with suction-side wear plate in wear-resistant diagonal gap design
• High levels of efficiency with channel-type impeller; impeller with front vanes and diagonal gap; back vanes reduce axial thrust
• Dry shaft: no special materials required
• Bearing assembly in reinforced, adjustable design
• Mechanical seal fitted in conical shaft seal chamber for optimum circulation around the mechanical seal, venting and drainage of the shaft seal chamber
